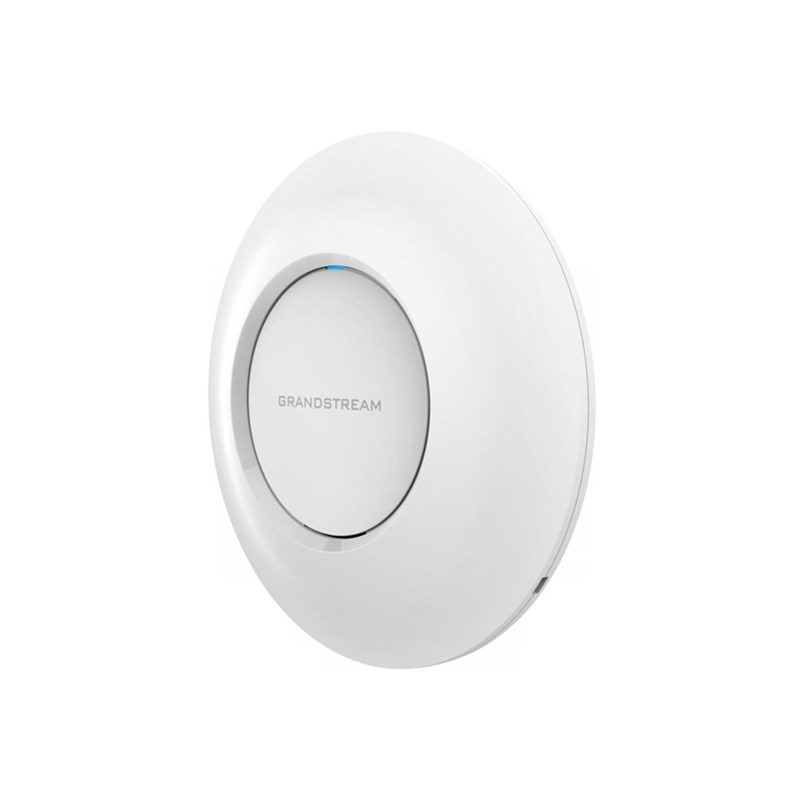

GWN7615

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas

3 dual band internal antennas

2.4GHz, gain 3dBi

5 GHz, gain 3dBi

Wi-Fi Data Rates

IEEE 802.11ac: 6.5 Mbps to 1300Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

IEEE 802.11n: 6.5 Mbps to 450 Mbps

IEEE 802.11b: 1, 2, 5.5, 11Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4 GHz Radio: 2412 – 2484 MHz

5 GHz Radio: 5180-5825 MHz

Channel Bandwidth

2.4G: 20 and 40MHz

5G: 20, 40, and 80MHz

Wi-Fi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

3×3:3 2.4G(MIMO)

3×3:3 5G(MU-MIMO)

Coverage Range

Up to 175 meters

*coverage range can vary based on environment

Maximum TX Power

2.4G: 26 dBm

5G: 24 dBm

*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs

16 SSIDs per access point

Concurrent Clients

200+

Network Interfaces

2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

1x Reset Pinhole, 1x Kensington lock

Mounting

Indoor wall mount or ceiling mount, kits included

LEDs

3 x tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

PoE 802.3af/ 802.3at;

Max Consumption: 12.5W

Environmental

Operation: 0°C to 40°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

Physical

Unit Dimension: 205.4 x 205.4 x 45.9mm; Unit Weight: 500g

Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 867.3g

Package Content

GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide

Compliance

FCC, CE, RCM, IC
