Omnia 7000
7545089

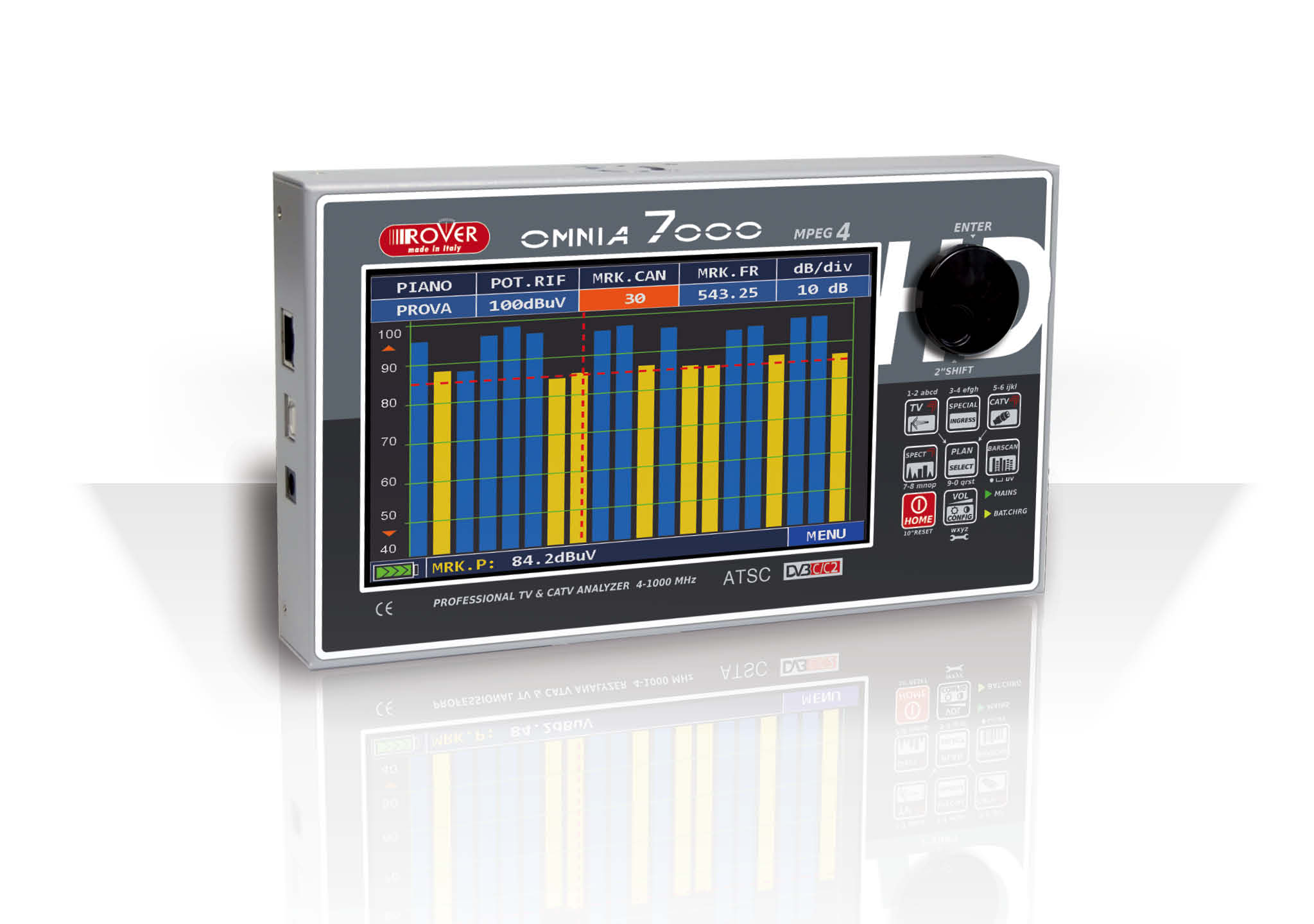

Rover Omnia 7000 on monipuolinen 7" kosketusnäytöllä oleva DVB-C / T / T2 analysaattori 5-1250 MHz taajuusalueella.
Taajuusalue 5-1250 MHz. TV, laajennettu CATV, FM, GSM alue.
Soveltuu mittauksiiin: QAM J83-A&B, ATSC (8VSB) DVB-T/T2/T2 LITE and SD/HD kuvailmaisu.
Spektri, BER, MER, konstellaatio. Tehoalue 25-125 dBuV.
Optiona saatavana sisäänrakennettu Docsis 3.0 kaapeli-TV modeemi 5-1000 MHz
Optiona saatavana Optisen tehon mittari. vaihdettavat tuloliittimet FC-ST-SC,
automaattinen vaimennuslaskenta, aallonpituudet
850, 1310, 1490, 1550 nm, alue -25 - 10 dBm.
Li-Po akku 4 Ah, Virtalähde/akkulaturi 12 VDC/1A, autolataus johto.
Laite on valmistettu tukevaan metallikoteloon ja sisältää kevyen suojalaukun.
- Main Functions
- Frequency range from 5 to 1250 MHz extended CATV and GSM telephone bands
- Digital RF measurements 5 MHz to 1,25 GHz including average power/level, pre/post BER, MER versus CARRIER (opt.), noise Margin, spectral analysis, and constellation
- INGRESS mode, LEAKAGE mode, BARSSCAN and TILT
- DOCSIS 3.0 upstream and downstream capabilities, 8 x 4 channel bonding with automatic lock to CMTS, for complete modem installation testing for both forward and return path analysis (opt.)
- Ping report, Network IP configuration
- Lost Packet measurements, latency time and PER
- DOCSIS upstream tone generator 5–65 MHz
- OPTICAL POWER METER with interchangeable FC-STSC connector for fiber optic testing (FTTH & FTTX) and troubleshooting (opt.)
- User definable channel scan testing /logging with automatic quality analysis: FAIL-PASS-MARG
- Assisted navigation, memory plans and automatic channel scan
- Available with all world-wide channel plans
- Alpha/numeric keypad for direct chan/freq selection
- SMART software PC interface for meter upgrades, channel plans and AutoScan testing/logging management
- Detects, measures and SHOWS pictures of MPEG 2 and 4 H264 HD high definition programs
- Automemory, Manual memory & Datalogger functions
- Barscan TV & CATV function from 10 to 100 channels on one screen
- Audio, AAC supplied, DOLBY (opt.)
- 7” TFT TOUCH display, 16:9, high resolution
- Weighs only 1.6 kg, dim: H 14 x L 24 x D 4 cm
- LI-POLIMER 4A battery with 4 hr battery capacity
- Battery test function, to regenerate and measure the batteries and calibrate the battery indicator
- Supplied with transport padded bag, accessories, mains and vehicle battery chargers
- Free S.M.A.R.T. PC interface program and FW upgrades
- Frequency range: TV, CATV & and radio 5-1250 MHz
- Frequency resolution: 25 KHz
- RF input impedance: 75 ? (interchangeable “F” connector)
- Dynamic range: 1 dBuV to 125 dBuV or -59 to +65 dBmV or -112 to +16 dBm
- Measurement resolution: 0.1 dB
- Level measurement accuracy: 1 dB typ. (2 dB max.)
- A/V ratio: up to 22 dB, +/- 1.5 dB (2 dB max.)
- S/N ratio: up to 45dB +/-1.5 dB Max; 45-50dB +/-2dB
- Resolution filter bandwidth: 100 KHz @ -3 dB
- Custom channel plans: 25 (199 ch. per plan)
- Frequency band: 5-1250 MHz
- Power meas. dynamic range: 25 to 125 dB?V, -45 to 65 dBmV
BER Measurement: (pre) bBER up to 1 x 10-9 (post) aBER up to 1 x 10-9 - MER Measurement: up to 40 dB (1 dB typ., 2 dB max.)
- FC-ST-SC interchangeable input connectors
- Automatic loss calculation
- Wavelengths (nm): 850,1310, 1490, 1550
- Range: -25 to 10 dBm
- Resolution: 0.1 dB
- Accuracy: +/- 0.5 dB
- Optical to RF conversion
- Ingress scan spectrum
- Frequency: 5 -65 MHz
- Level: from 5 dBuV to 125 dBuV
- Accuracy: +/- 2dB
- BW: 100 KHz @ -3dB
- Frequency range: 115-140 MHz (USA), 250-430 MHz (EUROPE)
- Resolution: 25 KHz
- Antenna type: selectable
- DOCSIS 3.0 compliant modem (8×4 CH BONDING)
- Frequency band: 5-1000 MHz
- Input impedance: 75 ? (interchangeable “F” connector)
- Range: – 45 to + 65 dBmV
- Measurements include: level/power, MER, pre/post BER, lost packet, transmit power, transmitted packets, received packets, PER, latency min/max avg, channel bonding upstream level and IP status
- MAC address: default or user defined
- Tone generator frequency: 5-65 MHz
- Modulation: QPSK, QAM, 8,16,32,64
- Typical range: from 8 to 53 dBmV (1 dB typ., 2 dB max.)
- Channel bonding: up to 4 upstream channels bonding supported ingress scan spectrum
- Frequency range: 5-65MHz
- DOCSIS 3.0 and RF: F – Female
- LAN: RJ45 10/100 Ethernet
- USB 2.0: Type B (PC interface)
- USB 2.0: Type A (USB drive)
- Power supply: built in Li-Po rechargeable battery, external power supply 12 VDC – 1A
- Battery duration at 25°C: 4 hours
- Size: H 140 x W 240 x D 50 mm (meter only)
- PC Interface: USB
- Display: color LCD 7” (480px x 800px)
- Front-panel: alpha numeric keypad
- Power Save: TFT backlight timer, brightness adj.
- PC Management: S.M.A.R.T software
- Standard Accessories: – Soft carry case and strap – USB 2.0 cable – AC adapter – 12V automotive charging cable – RF & optical interchangeable connectors – S.M.A.R.T. software
- AVAILABLE OPTIONAL APPs: DOCSIS 3.0 Cable Modem (4X4 or 8X4) (opt.), optic input (opt.), HD DOLBY (opt.), HD MER Vs CARRIER (opt.), HD COAX cable reflectometer (opt.), HD remote control (opt.), DVB-C2 (opt.)
- According to your country’s laws (12 to 24 months)
- All electronic parts, except batteries, bag and damage
Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument.
Technical Specifications
LEVEL MEASUREMENT & SPECTRUM ANALYSIS
POWER & DIGITAL MEASUREMENTS
OPTICAL MEASUREMENTS
INGRESS & SPECTRUM MEASUREMENTS
LEAKAGE MEASUREMENTS
DOCSIS DOWNSTREAM MEASUREMENTS
DOCSIS UPSTREAM & GENERATOR/TESTING
COMM. PORTS
GENERAL SPECIFICATIONS
WARRANTY
Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument.
