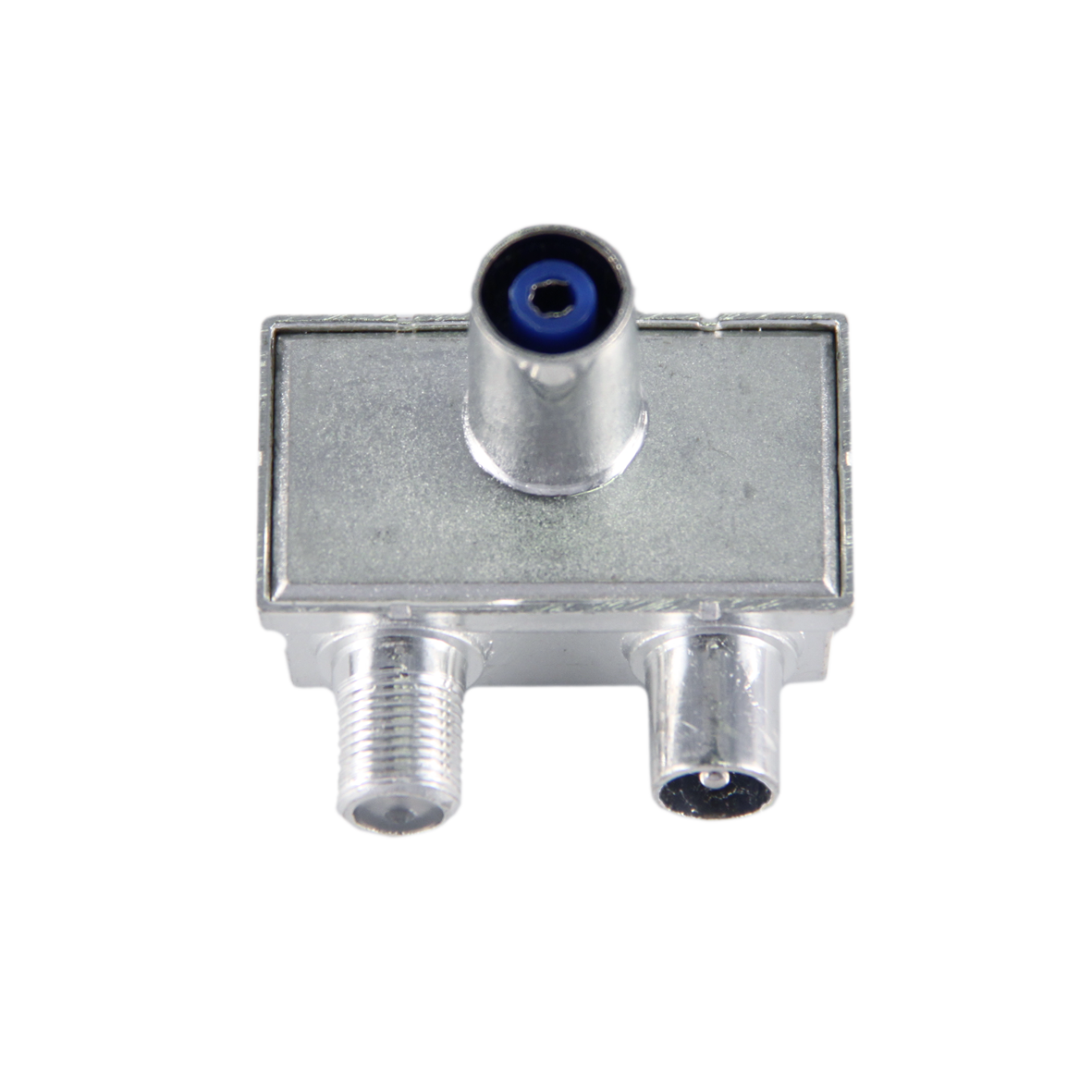

POF DL

Data

Frequency range (MHz)           5-65, 118-1000

Insertion loss (IN-DATA)          5-65 MHz 0.5 dB

Insertion loss (IN-DATA)          118-1000 MHz 4.0 dB

Isolation (DATA-TV)                   5-65 MHz > 45 dB

Isolation (DATA-TV)                   118-862 MHz > 22 dB

Isolation (DATA-TV)                   862-1000 MHz > 15 dB

Connector                                   F-female

TV

Frequency range (MHz)            118-1000

Insertion loss (IN-TV)                118-1000 MHz 4.0 dB

Isolation (TV-IN)                         5-65 MHz > 35 dB

Connector                                    IEC-male

General

Input connector                          IEC-female

Return loss                                  Cat. B1

Screening effectiveness            Class A2

Return loss:

CENELEC 50083-4 Category B 5-40 MHz ? 18 dB,

40-1000 MHz min. 18 dB ÷ 1.5/oct.

Screening effectiveness:

CENELEC 50083-2 Class A 5-300 MHz ? 85 dB,

300-470 MHz ? 80 dB 470-950 MHz ? 75 dB,

950-1000 MHz ? 65 dB
